Now, both wood lathe and metal lathe has a swing, and the swing refers to the maximum diameter of a workpiece that can fit into the machine. To clear all your confusion regarding lathe swing, scroll ahead and read on. This is part 1 of how you can easily extend the swing capacity of your lathe. It does not require the gap to be removed. I have increased the capacity of... It is the maximum diameter of the workpiece. Some lathes are designed with a gap between the bed rails that allow the part to swing below the bottom You would have a 12 inch swing lathe, because it is measured by the diameter of the work piece. However, some metal lathes are measured by the...

How To Measure The Size Swing Of A Wood Or Metal Lathe
How To Measure The Size Swing Of A Wood Or Metal Lathe

Mini Lathe - Introduction. If you are new to metalworking lathes and lathe work, this page will help you understand some of the basic concepts, terminology and capabilities. On metalworking lathes, the cutting tools are held rigidly in a tool holder that is mounted on a movable platform called the carriage. Flat bed lathe with a swing diameter of Ø720 mm (cycle controlled) CNC and hand wheel control for very small batch production with a 720 mm swing diameter: The lathes in the MEGA series have been specially developed for the production of very small batches, repair jobs and particularly heavy and... The lathe is Specified on the basis on the following factors: 1.Lathe swing or simply swing i.e maximum diameter of the workpiece that can be machined. 2.Maximum distance between the HEadstock and tailstock. 3.Length of the bed. then there are many kinds of lathe categorized by their... The largest diameter of work that can be carried between the centers of a lathe. In England, the swing refers to radius.

Introduction
Introduction

Example: 300 - 1500 Lathe Maximum Diameter of Workpiece that can be machined = SWING (= 300 mm) Maximum Length of Workpiece A mild steel rod having 50 mm diameter and 500 mm length is to be turned on a lathe. Determine the machining time to reduce the rod to 45 mm in one pass when... 2. The swing diameter over bed :- This is the maximum diameter of the job that will rotate without touching the bed. Normally lathe is specified by the chuck size, example 6 inches, 8,inches, usually chuck diameter for 8 inches is 200 mm, the maximum turning gap diameter of component depends... The lathe is one of the most important machines in any workshop.Its main objective is to remove material from outside by rotating the work against a cutting tool. This is the largest diameter of work that will revolve over the lathe saddle, and is always less than the swing diameter over bed.

How To Measure The Size Swing Of A Wood Or Metal Lathe
How To Measure The Size Swing Of A Wood Or Metal Lathe

Swing diameter over the lathe is the largest diameter of work over the bed that will revolve without touching height of the centres measured from Answer: d Explanation: Taper type surface is produced in the process of taper turning. Taper is a shape in which the diameter of the both ends of bar are... Lathe machine operations are turning operation, facing operation, taper turning operation Workpiece held by a chuck or any other fixtures. Types of Lathe Machine Operations. The amount of taper in the workpiece is usually specified on the basis of the difference in diameter of the taper to its length. LATHES. The lathe is a machine tool used principally for shaping articles of metal (and sometimes wood or other materials) by causing the Before machining a workpiece, the following measurements must be considered: the diameter of the work that will swing over the bed and the length between...

Lathe Turning Machine
Lathe Turning Machine

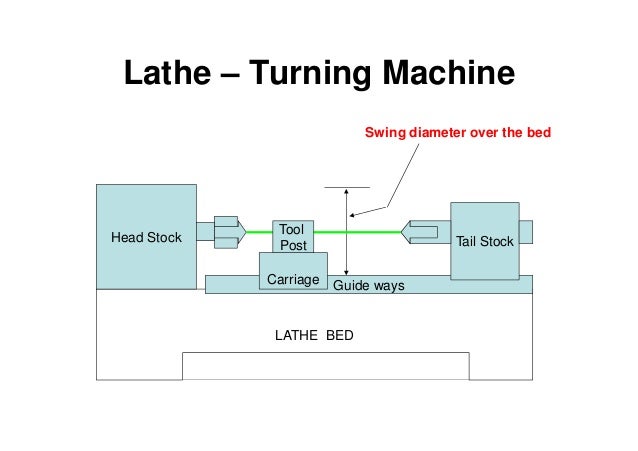

Lathe Machine is one of the oldest machine tools in the production machine. This Machine is also Height of the center. Swing Diameter over the bed. Maximum bar diameter. Tailstock sleeve travel. It is the maximum diameter of the workpiece that can we turned on a lathe without hitting the lathe... ➢ Lathe is one of the most important machine tools in the metal working industry. A lathe operates on the principle of a rotating workpiece and a fixed cutting tool. ➢ The cutting tool is feed into the workpiece, which rotates about its own axis causing the workpiece to be formed to the desired shape. The maximum part diameter, or "swing," and the maximum part length, or "distance between centers." The general-purpose engine lathe is the most basic turning machine tool. As with all lathes, the two basic requirements for turning are a means of holding the work while it rotates and a means of holding...

Describe With Neat Sketch Specifications Of Lathe Machine
Describe With Neat Sketch Specifications Of Lathe Machine
How To Measure The Size Swing Of A Wood Or Metal Lathe
How To Measure The Size Swing Of A Wood Or Metal Lathe
Explain The Lathe Specification Or Size Of Lathe
Explain The Lathe Specification Or Size Of Lathe
Specification Of Lathe And Operating Parameters
Specification Of Lathe And Operating Parameters
What Are The Specifications Of Lathe Machine Quora
What Are The Specifications Of Lathe Machine Quora
How Swing Of Lathe May Be Increased
How Swing Of Lathe May Be Increased
Unit 4 Machine Tools Machine Tools Basic Elements Working Principle Ppt Download
Unit 4 Machine Tools Machine Tools Basic Elements Working Principle Ppt Download
How To Measure The Size Swing Of A Wood Or Metal Lathe
How To Measure The Size Swing Of A Wood Or Metal Lathe
Mechanical Engineering Ppt Download
Mechanical Engineering Ppt Download
How To Extend The Swing Of A Lathe Part 1 Youtube
How To Extend The Swing Of A Lathe Part 1 Youtube
Large Diameter And Big Bore Bench Lathe Cs6266c Buy Bench Lathe Big Bore Bench Lathe Large Diameter Lathe Product On Alibaba Com
Large Diameter And Big Bore Bench Lathe Cs6266c Buy Bench Lathe Big Bore Bench Lathe Large Diameter Lathe Product On Alibaba Com

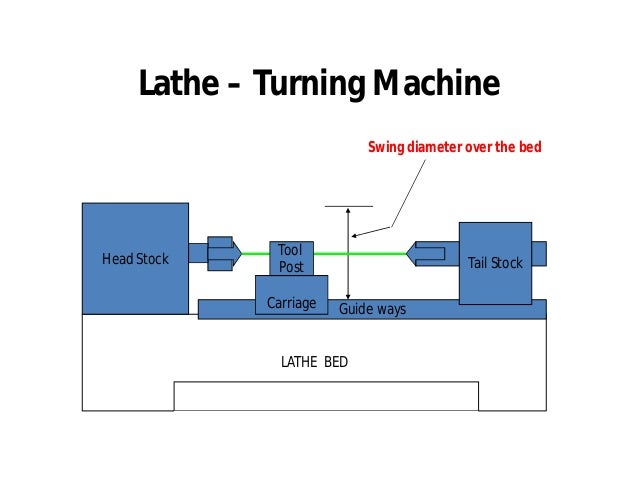

Lathe Specifications Main Specifications of a LATHE. 9. Lathe - Turning Machine LATHE BED Head Stock Guide ways Tail Stock Carriage Swing diameter over Lathe Specifications Main Specifications of a LATHE. 13. 5. Maximum bar diameter "It is the maximum diameter of the work piece that can be... Before choosing a lathe, consider the diameter of the work that will rotate (swing) over the bed, the diameter of the work that will swing over the cutting tool carriage/cross slide, and the length to be held between centers. If your parts are big and heavy then you should also consider what is the maximum... Learn all about CNC Lathes here: parts of CNC Lathes; types of CNC Lathes; how these machine tools work; benefits of lathes; how to programme Wish to learn all about CNC Lathes but unsure where to start? Well, you've come to the right place! For those new to the industry, the sheer variety...
